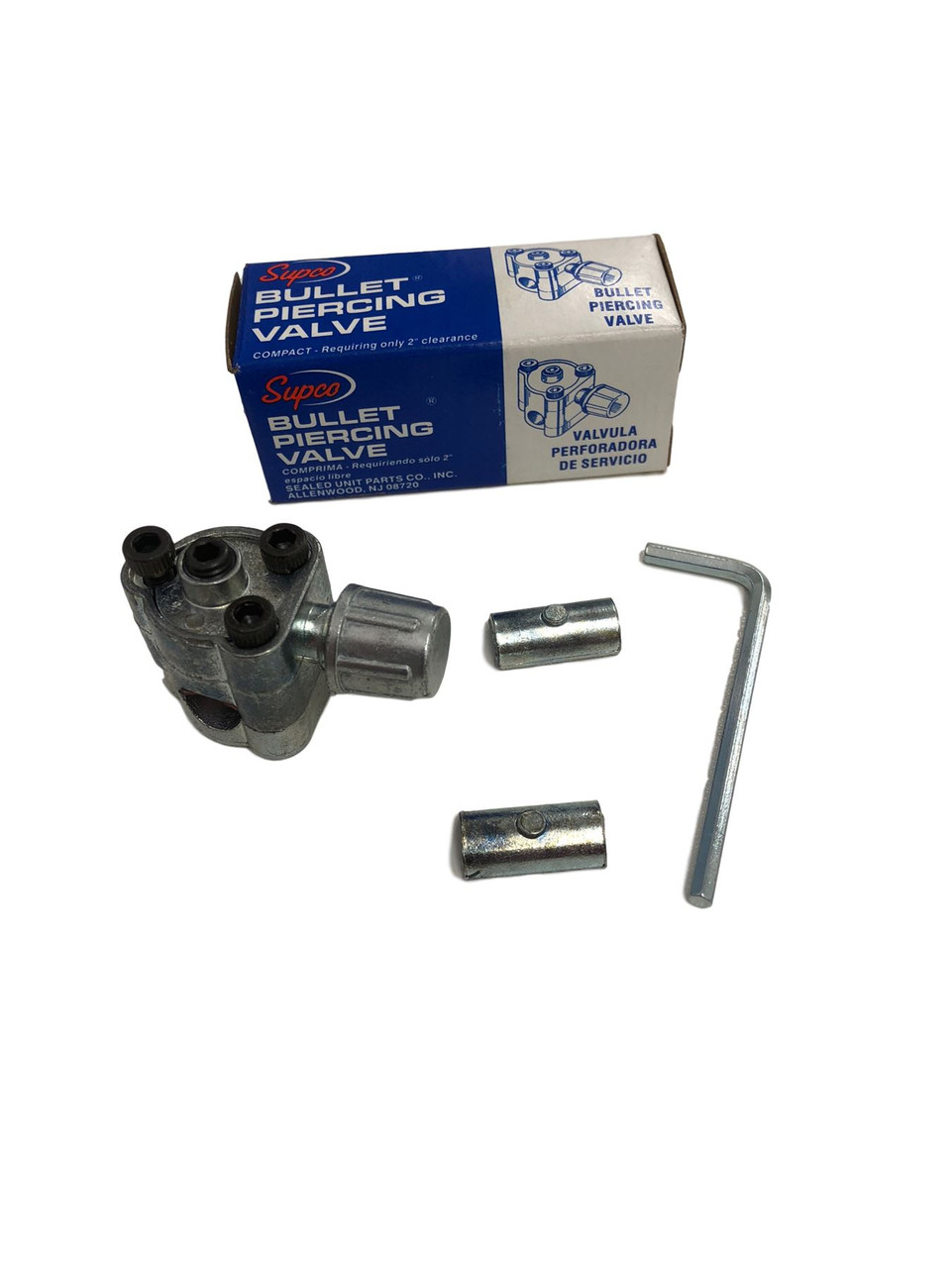

SUPCO BPV31 BULLET PIERCING VALVE REFRIGERATION AIR CONDITIONING COPPER TUBING

SUPCO'S "Bullet Piercing Valve" utilizes the same type of gasket found under the head plate of most air conditioning compressors. When
installed, the gasket actually compresses the copper tubing .020" creating a "Permanent", leakproof seal that will withstand any pressure and temperature for the life of the unit.

Application

Install on the high side as a "Permanent" valve on the job

The Bullet Piercing Valve will not leak

Install on round suction lines or uneven tubing

​Product Details:-

Hex key wrench included - No additional tools required

Nonpositional mounting - No adapter valve required

Precision piercing needle is engineered for concentricity and hardness to insure perfect seating every time

Patented valve gasket application provides 50 times more sealing area than competitive "O" ring types

A sealing force of over 180 inch lbs., torque tested with 500 lbs., pressure tested at 250°F

Requires only a 2" clearance area for installation and operation

Provided with a corrosion resistant plated and lacquered finish

​For 1/4", 5/16", 3/8" tubing.
